special lifting table

Special lifting tables are suitable for every application

Standard lifting tables quickly have their limits as they are often not suitable for the respective application. That's why we have specialized in ideally implementing the requirements and wishes of our customers with our industrial lifting tables. No matter what application, what load capacity, what size or what structures are required – our technicians will be happy to advise you and create the perfect lifting table offer.

Our classic lifting tables cover a wide range of platform sizes. Nevertheless, there are always requirements to adapt the lifting table platform to special circumstances. Very long platforms up to 20 meters, very wide lifting table platforms up to 4 m, but also extremely small platforms such as. B. 500 × 400 mm are available.
Our standard range includes lifting tables up to 10 tonnes. However, this high load capacity is often not enough, which is why we also offer special lifting tables with a very high load capacity. Depending on the application and the size, there are hardly any limits. These heavy-duty lifting tables are extremely robust and solidly built so that they have a long service life despite heavy loads.

Our technicians welcome any request for a lifting table with special dimensions or special requirements. Do not hesitate and contact us at any time.

We have implemented countless special lifting table designs. Built and designed to last.

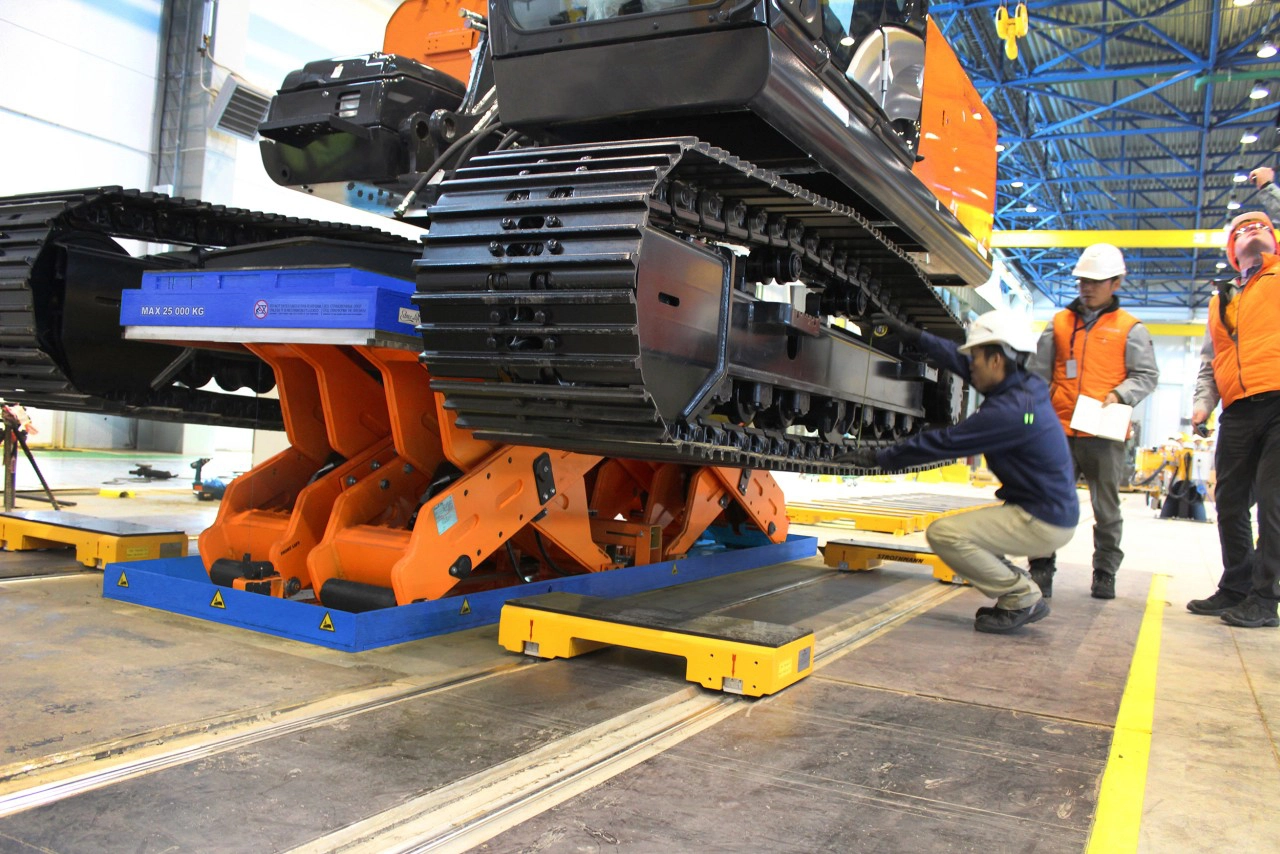

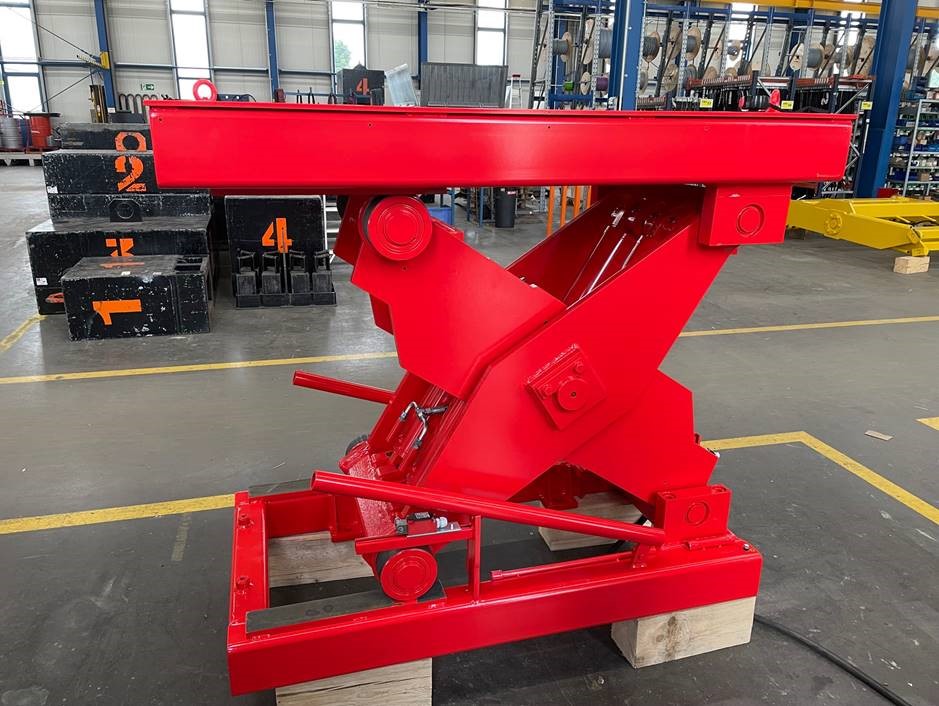

Special lifting table with extremely high load capacity

Special lifting table with extremely high load capacity

The customer often only has a very small area available, but extreme loads still have to be lifted. With this installation we had to lift 16 tons on a platform of only 1500 x 800 mm. Only our experienced designers were able to develop a unique scissors design to meet the customer's requirement.

Car lifting tables for special values

We not only lift pallets and goods to the next floor, but also your vehicles. Our special car lift tables are designed for transporting rolling loads between two floors. The bolt lock for the upper stop ensures that it can be driven on without deflection and additionally secures the platform. The elevator control ensures a safe and trouble-free process. Our car lifts are not approved for passenger transport and can be manufactured in all possible sizes.
We are also happy to offer shaft, sectional, roller or swing gates and carry out the installation on site.





Car lifting table for special values

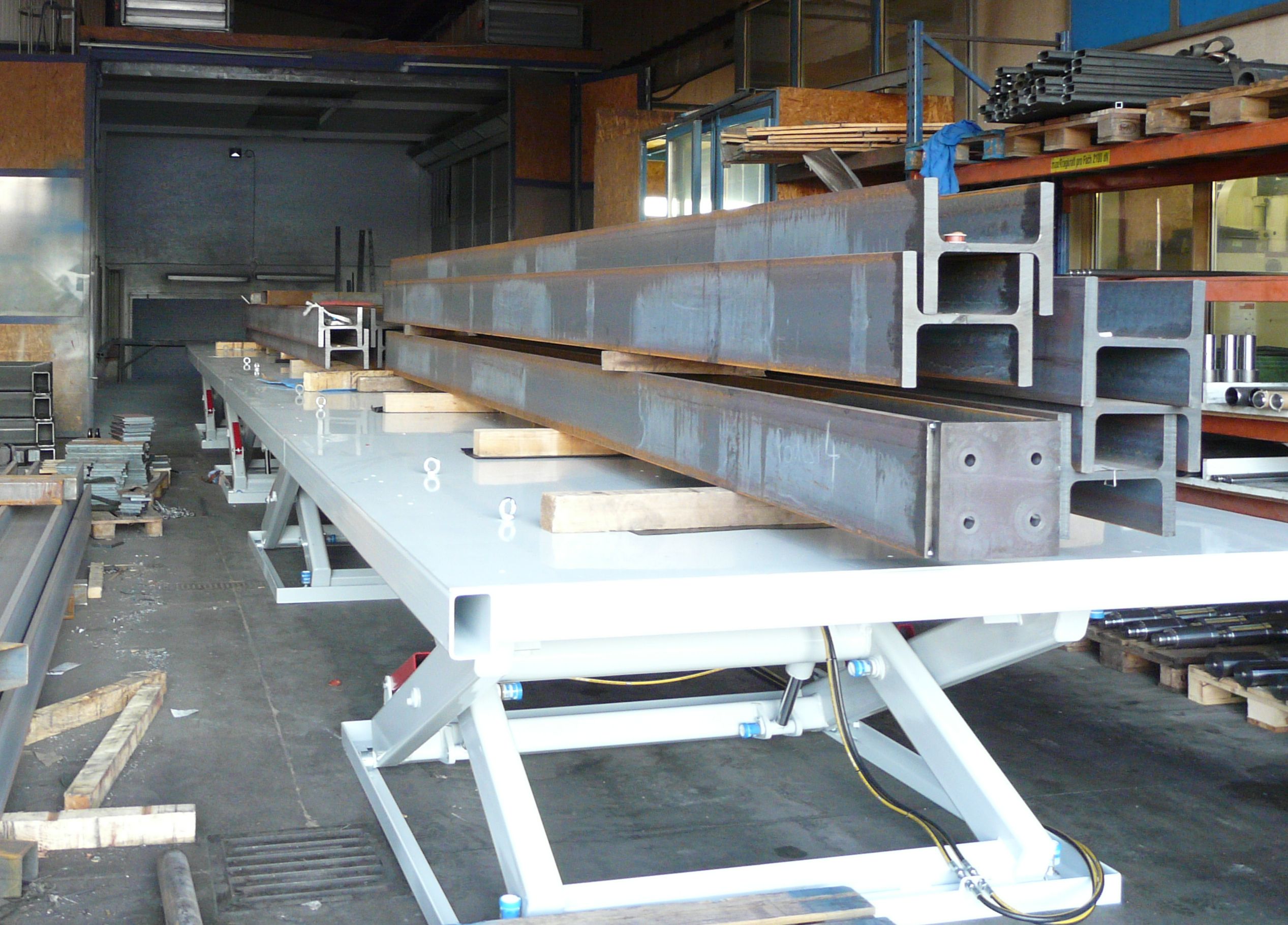

Very long lifting table for the wood industry

Very long lifting table for the wood industry

If it has to be longer! We can also produce our lifting tables with very long platforms. In this project, 18.5 tons of load had to be lifted on a 15m long platform.

With the help of our technicians, we have found a solution with 4 scissor packages, which move up synchronously via a flow divider. In addition, lifting tables are in great demand in the wood industry, so we had to build them extra stable.

There are many special forms of scissor lift tables, which we can supply in all sizes. Here are some examples with a short explanation:

ATEX lifting tables are special versions for explosion-proof environments. For ATEX lifting tables, we always recommend that the unit be set up outside the protected area.

are set up in conveyor systems or before and after machines. These lifting tables are characterized by the fact that they are designed for cycle operation. When procuring such a system lifting table, it is important to state the number of upward strokes or short strokes. We are also happy to equip these lifting tables with a roller conveyor, a chain conveyor, ball rollers or other structures.

are lifting tables for the transport of people. Products or systems often have to be processed at a greater height. This is where our aerial work platforms are used, as they are significantly safer than ladders. This type of lifting table can even be equipped with a platform that can be moved sideways, i.e. the platform can be extended. Our special lifting tables in this category can also be used as height-adjustable work platforms in front of machines so that all employees can work at a comfortable working height.

are becoming more and more modern. Space in cities is getting tighter, so cars have to be parked in the basement or on another floor. We offer our car lifts as a shaft solution with gates, as a retractable garage with a roof on the platform or as a combination of these two designs. We are also happy to carry out the planning, assembly and acceptance for you.

Column jacks are used when the platform size is relatively small in relation to the useful lift and a pit cannot be built. The platform moving on the lifting mast allows very high lifting heights to be achieved and goods can be transported to the next floor.

Lift tables with integrated rotating plate. It is often not enough to just lift your goods, as they also have to be rotated up to 360°. Here we offer rotating lifting table platforms in all sizes. The pallet or grid box can be rotated in the desired direction and fixed there.

Mobile lifting tables are used when the product needs to be processed in more than just one place in the company. We can offer our lifting tables with classic wheels, a rail chassis or with other drive types based on customer requirements.

More custom-made lifting tables for viewing

If you have any questions, please contact us immediately Contact on. We are happy!

Connect two lift tables
The task here was to be able to operate two lifting tables with just one unit.
Lift table with loading flap
Plant lifting table conveyor line
Application of ball transfer units in lifting tables
Parking car with lift table underground
Parking car with lift table underground
When the lifting table is sunk, it is no longer possible to see that there is a sunk garage here.
Sinking the car with a lifting table
You can park a car on a lifting table with a canopy and lower it into the ground.
Car lifting table with shaft
Car lift gates open at the top
Car lifting table between 2 floors
We'll bring your car to the next floor.
Stainless steel lifting table food industry
Stainless steel lifting tables are very common in the food industry. We know wet operation very well and offer durable lift tables.
Large loading lift table
No task is too big for our loading lift tables.
Stacking wooden panels with lifting table
aerial work platform
Elevating work platforms with railings, emergency lowering and doors on the platform. We offer these stages in all dimensions - incl.
Elevating table with mechanical supports
Lift table automotive industry
Galvanized lifting table with loading flap
Galvanized lifting table with loading flap
Galvanized lifting table with loading flap
Lift tables with lifting eyes
High altitude lift table
Lifting table for woodworking
Lifting table for long wooden boards
Lifting table for long wooden boards
Long narrow lifting table
Lift table yellow with bellows
Yellow lifting table with bellows
Lift table wood industry
Lift table wood processing
Lift tables with roller conveyor in wood processing
Lift table outside
Lift table outside
Lift table outside
Lift table outside
Elevating table in production line
Lifting tables in a production line including bellows.
Narrow lift table
Lifting table with 4-fold scissors
Galvanized lifting table outdoors
Lift table with extendable platform
Lift table with automatic height adjustment
Lift table with bolt locking
Lift table with bolt locking
Lift table with bolt locking
Lift table with roof as a parking space
sink the car into the ground. We offer a complete solution including assembly.
Lifting table with turntable
Lift table with turntable in front of a production line. The user can always turn the lattice box in such a way that he can reach his products ideally.
Lifting table with rotating platform and roll-off protection
The upper platform is rotatable. Lateral guides are welded on as support protection.
Lift table with triple scissors
Lifting table with bellows and railings
Transporting goods to another level was easily solved with a lifting table. Bellows as underflow protection and gates including railings as fall protection.
Lift table closed with bellows
Heavy-duty lifting table with bellows. This 6000kg lifting table was built to be extra robust and stable.
Lift table with bellows tilting platform
Lifting table with bellows and tilting platform at an angle
The underflow protection was solved here with a bellows.
Lifting table with bellows and tilting platform on the side
Double platform for the tipping mechanism
Lifting table with bellows
A bellows under a lift table serves as underflow protection for people and at the same time protects the lift table from dirt.
Lifting table with railing and checker plate
Lift table with lattice shirt - railings and portal
We bring the goods to the upper floor with a lifting table. Attached to the outside of the building and the upper stop is secured with a gate.
Lift table with large platform and double scissors
Lift table with folding ramp
Lift table with small platform and extreme load capacity
Heavy products often have to be lifted with small lifting tables. Here we have the solution.
Lifting table with ball rollers in the platform
Lifting table with ball rollers in the platform
Lifting table with ball rollers
Elevating table with mechanical supports
Elevating table with people between two levels
Elevating table with roller conveyor
Execution coordinated with the customer and delivered exactly what was needed.
Elevating table with roller conveyor
Lifting table with rail chassis
Lift tables with rail chassis and railings are often used as aerial work platforms.
Elevating table with mechanical supports
After the lift table is extended, the outriggers raise and the platform lowers to rest on the outriggers.
Lifting table with tear plate
Loading lifting table with tear plate and lifting lugs
Lifting table with underrun protection
Lift table with sliding platform and roll-off protection
Lifting table with sliding platform
Lifting table with countersunk ball rollers
Lifting table with quadruple scissors
If an extreme lift is required, but only a small footprint is available, then we use quadruple scissor lift tables.
Lift table with accordion
3000 kg lifting tables with Faten bellows as all-round underflow protection.
Lift table wet area
No job is too wet for our stainless steel lifting tables.
Lifting table without lowering
Due to the mechanical supports, which extend automatically when lifting, the lifting table can no longer lower.
Lifting table with hydraulic bolts
Lift table with bolt locking
With bolt locking, the lift table can no longer lower at the upper stop. Ideal for car lift tables.
Extremely narrow lifting table
Here we had to deliver a very narrow but nevertheless very long lifting table.
Elevating table with roller conveyor
We can supply lifting tables with built-up roller conveyors. It is also possible for the customer to set up the roller conveyor himself.
Lift table lower stop Gate open on both sides
We build gates according to customer requirements.
Lift table lower stop Gate closed
The gate locks and only then can the lifting table go up.
Lift table lower stop Gate open
The lower gate on the lifting table can only be opened if the lifting table is also in the lower position.
Lift table lower position
A door was installed at the upper stop, which can only be opened when the lifting table is up.
Lift table connects two levels
This lifting table connects two levels in the building. Railings and a gate were installed as fall protection on the lifting table.
Elevating table between two floors
Heavy goods often have to be transported to the upper floor. We accompany the projects from creation to handover.
Elevating table between two floors
Goods transport from one level to another. Project including assembly and acceptance on site.
Elevating table between two floors
Lifting tables made of stainless steel
Stainless steel lifting tables are often used in the food industry. Here we clarify in advance what the customer needs and offer exactly according to customer requirements.
Ball transfer units in lifting table platform
Ball transfer units in lifting table platform
Allocation according to customer specifications
ball transfer table
Lifting table with ball rollers in the platform.
Massive loading lift table with roller blind
Connect two levels with a lifting table
We had to use this lifting table to move rubbish bins from one level to the other. The fall protection was provided by railings and gates, with a lattice shirt the underflow protection.
Platform with side shift for lifting tables
This lifting table can not only move from top to bottom, but also has a special platform that can be moved sideways.
Giant lifting table with double scissors
No stroke too large, no load capacity too heavy.
Robust double scissor lift table
Extremely large lifting table with enormous load capacity. Custom built for a customer.
Robust loading lift table with roller blind
Robust loading lift table
Column lifter with tilting platform
Manufactured on customer request. Whatever you need, we build it.
Column lift unit with control
External aggregate from the column jack
Car jack between two floors
Car jack without installation pit.
Car jack between two floors
We are happy to transport your car from one floor to the next. The challenge here was that there was no deep pit in the basement.
Column lifter with e-platform
Ideal for loading with a pedestrian stacker without a pit. Pallets can be ideally brought to the desired working height.
column lifter
This column lifter is used to transport goods between two floors. Due to the pillar we need a pit here.
Scissor lift table triple scissors
Here we had to overcome a great height in a small space. As a result, we had to use triple scissors.
Scissor lift table wood industry
Lift tables for the wood industry set up in a row.
Scissor lift table with ball rollers
Here we have integrated ball transfer units directly into the lifting table platform so that the customer can move and process their packages ideally.
Scissor lift table with supports
With this lifting table, the 4 supports at the corners automatically move up when lifting and the platform then sits on the supports. As a result, the lifting table cannot drop down in the upper stop when loading.
Scissor lift table in front of the machine
Several lifting tables in a row, so that long boards can also be stored ideally.
Heavy-duty lifting table for service work
We have equipped this lifting table for our customers in such a way that they can ideally lift and service their products. Load capacity here 25,000 kg.
Heavy-duty loading lift table
Loading lifting table with 4 tons load capacity.
Stable loading lift table with PVC roller blind
Stable loading lift table with several segments PVC roller blind in black as underrun protection
Stable loading lift table with roller blinds on 4 sides
Stable loading lift table with roller blind
Protective curtain under the platform as underrun protection.
Stable loading lift table with underrun protection
Here we have installed PVC roller blinds all the way around on a very long lifting table. These roller blinds serve as underrun protection.
Loading lift with large platform
This extra long platform was specially built for a customer. The customer was thus able to place several pallets one behind the other and saved a great deal of time.
Loading lifting table - loading platform
Robust loading lift tables with a load capacity of 4 tons
Loading lift table - loading platform above
Loading lift table outside with railings and loading flaps. A mesh shirt was used here as underflow protection.
Loading lift table - loading platform below
Lifting table sunk in pit so that goods can be transported from the truck to the hall level.
Loading lifting table - loading platform
Loading lift tables in all versions with extensive accessories such as loading ramps, railings, traffic lights or gates available. These lifting tables have a load capacity of 4000 kg.
Loading lift table 10 tons
Lift tables with a load capacity of 10,000 kg or more are not a challenge for us.
loading lift table manufacturer
We manufacture all types of lift tables to meet every customer need.
Loading lift table high
Loading lift table in the pit for loading and unloading, as well as transport to the upper floor.
Loading lift table loading flap
Extra long lifting table with loading flap for loading trucks and flatbed trucks
Loading lift table long
Extra long lifting tables are manufactured on customer request. No matter how long - we keep up!
Loading lift table with bellows in the middle
Loading lift table with bellows on top
Loading lift table with bellows and railings on the platform
We deliver lifting tables including assembly and acceptance.
Loading lift table with bellows and loading flaps
This loading lift table for outdoor use was equipped with bellows, loading flaps, gates and railings.
Loading lift table with bellows and impact protection
Loading lift table with bellows as underflow protection and protection against dirt.
Verladehubtisch with railing - gate - fence
Large project with 5 identical loading lift tables including assembly on site,
Loading lift table with railing and gate closed
The lifting table only moves down when the gate has been closed. We have supplied this control along with the door contacts.
Loading lift table with railing and gate
Dimensions and accessories supplied and assembled on customer request.
Loading lift table with railing
Here we not only equipped the lifting table with railings, but also built an additional housing, which was connected to the lifting table control.
Loading lift table with large platform
Loading lift tables with railings and gates. Ideal for loading articulated lorries
Loading lift table with loading flap
Large loading lift table with electric loading flap
Loading lift table with impact protection and railings
Loading lift table with impact protection at the front
Bullbar and loading ramps. Feasible for every truck driver.
Loading lift table with impact protection
Crash protection delivered and installed on customer request. The lifting table is thus additionally protected.
Loading lift table with gate
Loading lift table with railings, gates and loading flap. The ideal lift table for unloading flatbed trucks.
Loading lift table with tear plate and railing
With the lifting eyes in the platform, this loading lifting table can be lifted directly into the pit with a crane.
Loading lift table with tear plate
Tear plate on the loading lift table so that the users do not slip away.
Loading table production
We build lifting tables according to customer specifications. Regardless of whether it is a load capacity or dimensions - we fulfill every wish.
Loading lift table huge
Large loading lift table with loading flaps and special base frame
Loading lift table robust
Long loading lift table with lifting eyes
Stable loading lift table
Extra long loading lift table produced exactly on customer request.
Lift table tugger train - lifting and tilting - LTT 750 4
Raise and tilt chassis with one device
Assembly table with spindle
spindle lift table
Spindle lifting table double scissors
Spindle lifting table with double scissors for a larger stroke
Spindle lifting table single scissors
Lift table with spindle drive
Spindle lifting table with chassis
Spindle lifting table with manual chassis
Screw jack series
Spindle-driven lifting tables in a conveyor system
spindle lift table
Lifting table with two spindles as a drive
heavy-duty lift table
Heavy-duty lifting table for lifting an excavator
loading lift table
Galvanized lifting table with bellows
Long lift table
Lift table with long platform and railings
Horizontal double scissor lift table
An extremely large platform was needed here, which still lifts evenly upwards. The solution: two sets of scissors
Tandem scissor lift table in special construction
Specially designed tandem scissor lift table with railings and special platform size
Tandem scissor lift table in special construction yellow
Tadem scissor lift table with 12,000 kg load capacity - platform size 2800 x 1500 mm
Stainless steel lifting table for the meat processing industry from maluk
Stable impact protection for rough operation and portal as fall protection for the upper station
Special lifting table with extremely high load capacity
Small platform and still unbelievable 16 tons capacity. We were able to solve this task thanks to the very small design.
Very long lifting table for the wood industry
Lifting table with an extremely long platform for the wood industry. A roller conveyor is also installed on this lifting table platform.
Lift tables with tilting function
With this tilting lift table you can not only lift up and down, but also tilt the goods automatically.
Lifting table with lateral tilting platform
With this tilting lift table you can not only lift up and down, but also tilt the goods automatically.
Heavy-duty lifting table in special design
If it can be bigger and higher. Heavy-duty lifting table specially adapted to the customer's requirements
machine
Excavators are lifted, inspected and serviced with this heavy-duty lift table.
Heavy-duty lifting table with railings
We have built massive railings and gates on the platform so that the goods cannot fall off the platform during the lifting process.
Heavy-duty lifting table with a load capacity of 22 tons
Lift table with 22,000 kg load capacity with mechanical supports
Lifting table with chassis and prism support 1
This special lifting table has a rail chassis with a traction motor.
Plant lifting tables for the wood industry
The task was for the lifting tables to be lifted up exactly and horizontally and also to withstand a large number of lifts in cycle operation.
Scissor lift tables with bellows in synchronism
These three lifting tables can be lifted in one plane at the same time. Optionally, each lifting table can also be moved individually.
factory
Special lifting table with screwable side parts. Railings were attached to the side parts.
science
Special lifting table with side parts, railings were still screwed on the construction site.
Scissor lift table with radio control
These eight lifting tables were equipped with a radio remote control.
Scissor lift table with bellows
A 4-sided bellows was chosen as underflow protection.
Lift table trolley for Euro pallets
Extra stable design for an 800kg Euro pallet
Column lift lower stop
At the lower stop, our lifter does not require a shaft pit.
Loading lift table with portal and long loading flap
The long loading flap is placed in the truck so that it can be loaded with a pallet truck.
10 ton heavy duty lift table
Lift table with undercarriage and floating platform
Manually traversable lifting table with 50mm floating platform.
Mobile lifting table with ball rollers 2
The load can be shifted on the lifting table using the ball transfer units.
Pillar lifter middle stop
The middle stop is also secured with our shaft and a gate.
10 ton heavy-duty lift table on the truck
A heavy-duty crane had to be organized for loading onto the truck.
Heavy-duty lifting tables, individual parts on the way to the coater
The coating of our lifting tables is carried out in a partner company
Heavy-duty lifting table with a load capacity of 22 tons
Project with 6 identical heavy-duty lifting tables for a German industrial customer.
Lift table at the lower stop - door open
The door on the lifting table only opens when the lifting table is in the lower position.
Lift table at the upper stop
Lift table ready for loading at the upper stop.
Scissor lift table - 6000 kg load capacity - 6600x6475 mm platform
Two cars will later be parked at the lifting table and will be raised to the level of the house.
Delivery and lifting with crane truck
The lifting table is delivered and then lifted directly into the prepared pit.
Gates open and railings at the top stop
The gates at the top stop can only be opened when the platform is at the top.
Flat lifting table for people with bellows
There are railings attached to both narrow sides of the height-adjustable platform.
Column jack at the lower stop
Column jack at the lower stop
Loading lift table at the upper stop
Loading lift table at the upper stop
Lifting table mounted in the shaft
Lifting table mounted in the shaft
Lifting table for garbage cans with a metal shaft
Lifting table for garbage cans with a metal shaft
Column lifter pre-assembled in the factory
Column lifter pre-assembled in the factory
Column lifter is brought to the installation site
Column lifter is brought to the installation site
Column jack at the lower stop
Column jack at the lower stop
Column jack at the top stop
Column jack at the top stop
loading lifting table with bellows
A bellows was installed as underflow protection.
aerial work platform with bellows
The bellows protects the area under the stage
Aerial work platform on feet for forklift transport
The aerial work platform can be moved to another position using the forklift.
Column lifter with grid shaft
Complete system with lift, shaft, doors and assembly,
Raise the lifting table with a forklift
Raise the lifting table with a forklift
column lift with shaft and ramp
We supplied a ramp at the lower stop because there was no pit available.
Column lift upper stop with open gate
The gate at the upper stop only opens when the platform is also up.
Schwerlast Arbeitstisch fahrbar
Höhenverstellbarer 6000kg Arbeitstisch
Scherenhubtisch mit Kette und Rollen
In der untersten Hubstellung kann man den Hubtisch verschieben.
Schweißtisch ohne Hydraulik
Dieser Schweiß Hubtisch kommt ohne Hydraulik aus.
Schwerlast Arbeitstisch fahrbar
Arbeitstisch mit 6000 kg Traglast - höhenverstellbar

Häufige Fragen zu Sonderhubtischen

1) Was ist ein Sonderhubtisch und wann brauche ich ihn?

Wenn Standardmaße oder -funktionen nicht passen, wird ein Hubtisch nach Ihren Vorgaben konstruiert. Typische Gründe: besondere Plattformgrößen, hohe Taktzahlen, spezielle Umgebungen or zusätzliche Aufbauten.

2) Welche Größen und Traglasten sind realistisch?

Von sehr klein bis sehr groß — Plattformen können z. B. bis zu 20 m Länge und Traglasten deutlich über 50 t erreichen, je nach Auslegung. Grenzen setzt häufiger die Einbausituation als die Technik.

3) Wie läuft eine Maßanfertigung ab?

Sie liefern Eckdaten (Last, Hubhöhe, Plattformmaß, Einbausituation, Takt, Umfeld). Der Hersteller konstruiert daraufhin und erstellt ein Angebot. Nach Freigabe: Fertigung, Lieferung und Installation.

5) Dürfen Personen mitfahren?

Nur, wenn der Hubtisch als Hubarbeitsbühne mit Personenzulassung ausgeführt ist. Autolifte/-hubtische sind nicht für den Personentransport zugelassen.

7) Geht Sonderhubtisch im Außenbereich oder Nassbereich?

Ja, mit verzinkten or Edelstahl-Ausführungen und passenden Dicht-/Schutzelementen. Wichtig ist eine konsequente Korrosions- und IP-Schutzplanung.

8) Gibt es ATEX-Ausführungen?

Ja, für Ex-Zonen sind spezielle ATEX-Hubtische möglich; Aggregate werden dabei oft außerhalb des Schutzbereichs platziert. Planung erfolgt strikt nach Zone, Medium und Zündschutzart.

9) Können Fördertechnik-Aufbauten integriert werden?

Ja, Rollenbahnen, Kettenförderer, Kugelrollen or Drehplatten lassen sich direkt auf der Plattform vorsehen. Das spart Schnittstellen und reduziert Handlingszeiten.

10) Wie werden sehr lange Plattformen stabil und synchron bewegt?

Mit mehrteiligen Scherenpaketen und hydraulischer Synchronisation (z. B. Mengenteiler). Konstruktion und Rahmensteifigkeit sind der Schlüssel gegen Durchbiegung.

11) Welche Angaben braucht ihr für ein schnelles Angebot?

Nutzlast (kg), Plattformmaß (L×B), Lift height, Einbauart (Grube/aufgesetzt), Takt/Arbeitszyklus, Umgebung (innen/außen/ATEX/Nass), Aufbauten/Anbindung. Fotos/Skizzen vom Einbauort beschleunigen die Auslegung.

12) Wie sieht die Wartung aus?

Regelmäßig Sicht- und Funktionsprüfungen, Öl-/Schlauch-/Dichtungscheck sowie Abschmieren der Gelenke. Intervalle richten sich nach Einsatzhäufigkeit und Umgebung.

13) Was kostet ein Sonderhubtisch?

Stark abhängig von Größe, Hub, Traglast, Sicherheitsniveau und Aufbauten. Rechnen Sie projektbezogen statt mit Listenpreisen.

14) Wie lange ist die Lieferzeit?

Projektabhängig: Konstruktion, Materialverfügbarkeit und Abnahme bestimmen die Dauer. Frühzeitige Klärung von Maßen, Statik und Genehmigungen spart Wochen.

15) Können auch Fahrzeuge gehoben werden?

Ja, Autohubtische/-lifte für rollende Lasten zwischen Etagen sind üblich – inkl. Toren/Schacht und Aufzugssteuerung. Personentransport ist ausgeschlossen.

16) Eignet sich ein Sonderhubtisch für Taktbetrieb in Linien?

Ja, plant lifting tables werden für definierte Hübe/Kürzhübe ausgelegt und an die Fördertechnik angebunden. Die Auslegung erfolgt auf Zykluszahl und Belastungsprofil.

17) Gibt es mobile Varianten?

Mobile lifting tables mit Rädern, Schienenfahrwerk oder kundenspezifischem Antrieb sind möglich. Wichtig: Bodenebenheit, Fahrwege und Brems-/Sicherungskonzept.

18) Was, wenn nur sehr wenig Stellfläche verfügbar ist?

Schmale, mehrstufige Scheren or column lifter sind Optionen; auch extrem kompakte Plattformen sind machbar, wenn die Statik passt. Die Konstruktion wird exakt auf Lastschwerpunkt und Einbauort abgestimmt.
