flat lifting tables
Robust flat lift tables of the highest industrial quality
Flat-form lifting tables or flat lifting tables are, as the title suggests, flat lifting tables which have a very low overall height when retracted and are only 80-100 mm high. Despite the low overall height, all models have a circumferential safety strip as crush protection under the platform and comply with the applicable lifting table standard EN1570-1.
The big advantage of this robust flat-form lifting tables is that you can place your pallets on the platform without a pit. For flat-form lifting tables with a closed platform, you can optionally order a ramp for the pallet truck. For the U-shaped models, you can drive the pallet truck or reach truck between the legs and place the pallet. The unit and control unit are always located outside the 3 m cable on flat-form lifting tables.
Thanks to our numerous flat lift table models, some of which we even have in stock, we can offer a very reasonable price. Don't hesitate and buy your perfect flat lift table from us. The C models are usually in stock and can be shipped within a few days, but they are only available in the standard version. The T models are always produced upon customer request and can be equipped with accessories.
We are happy to offer special solutions for the flat lift tables. Whether you need a larger platform, more lift or a higher load capacity, we will be happy to provide you with a free quote for your low lifting table.
Accessories such as turntables, railings, ramps, protective blinds, bellows or running gear are available on request.
Our flat lifting tables are robust and durable
Flat lifting table with closed platform
Flat-form lifting tables can also be used for people with disabilities or when caring for people with limited mobility.
flat lifting tables with a closed platform are constructed like classic single-scissor lift tables. However, the very flat scissor package allows for significantly lower construction heights of between 80 and 120 mm. This means that when loading at ground level with a pallet truck, you only need to dig a small pit or order a loading ramp. The construction costs or the price of the ramp are usually much cheaper, so a flat lift table pays off.

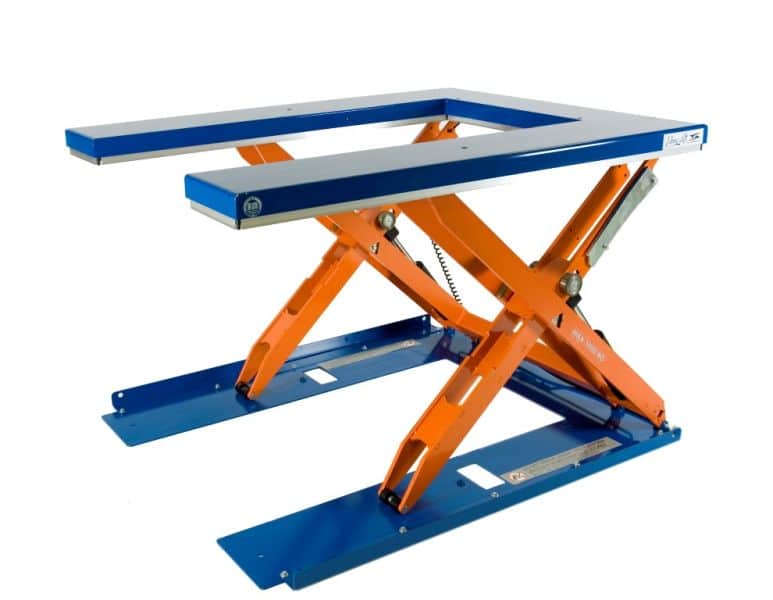

U-shaped flat lifting table
The most purchased flat lift table is certainly the U-shape lift table. The big advantage here is that the platform has an open area in the middle into which the forks of the pallet truck fit. In combination with the low height, you can simply place a pallet on the lifting table with a pallet truck without having to build a pit.
The U-shaped flat lifting tables are available in the standard range with 1000 kg (model TUL 1000) and 2000 kg (model TUL 2000). However, we also offer many special solutions in the area of flat lifting tables.
The cheapest model is the CUB 1000 with a load capacity of 1000 kg, platform dimensions of 1450 × 1085 and a lifting range of 80 to 800 mm. This model is also mostly in stock and therefore has a short delivery time. The only disadvantage is that the permitted number of strokes is a maximum of 4-6 strokes per hour, which is well below the TUL models.
Flat lifting table with E-shape
Back pain is one of the most common reasons for illness-related absences in logistics. On the other hand, maintaining a healthy posture at work and not lifting heavy objects helps. Our flat-form lifting tables help!
The flat E-shaped lifting table has the advantage that the middle bar of the pallet also rests on it. This is often used for unevenly loaded or disposable pallets.
Here we have the TUB models with a load capacity of 600 kg in our range. Other dimensions or lifting loads on request.
More flat form lifting tables for viewing
If you have any questions, please contact us immediately Contact on. We are happy!
Häufige Fragen zu Flachhubtischen
Was ist ein Flachhubtisch genau?
Ein Flachhubtisch ist ein sehr niedrig bauender Scherenhubtisch, der im eingefahrenen Zustand meist nur ca. 80–100 mm hoch ist. Dadurch lässt er sich ohne Bodengrube einsetzen.
Worin unterscheidet er sich von „normalen“ Hubtischen?
Flachhubtische sind auf geringe Bauhöhe und moderate Hubwege optimiert; typische Modelle heben bis ca. 800–840 mm. Standard-Scherenhubtische schaffen – je nach Ausführung – deutlich mehr Hubhöhe.
Wie niedrig ist die Mindestbauhöhe wirklich?
Viele Modelle liegen bei rund 80–100 mm, einzelne bei ca. 85 mm. Das reicht, um Paletten und Wagen bequem aufzufahren bzw. aufzusetzen.
Brauche ich zwingend eine Grube – oder reicht eine Rampe?
Eine Grube ist nicht zwingend. Flachhubtische werden oft mit Auffahrrampe betrieben und sind so sofort nutzbar. Alternativ gibt es Rampen als Zubehör in abgestimmter Länge.
Welche Plattformform ist sinnvoll (geschlossen, U- oder E-Form)?
Für Paletten mit Hubwagen sind U- oder E-Plattformen praktisch, weil die Gabeln in die Aussparungen einfahren. Eine geschlossene Plattform passt, wenn einzelne Teile oder Wagen aufgenommen werden.
Welche Traglasten sind üblich?
Verbreitete Flachhubtische decken ~600–1500 kg ab; es gibt aber auch Varianten bis 2000 kg. Die passende Traglast hängt von Lastgewicht und Sicherheitsreserve ab. Im Sonderbau sind höhere Traglasten möglich.
Welchen Stromanschluss brauche ich – 230 V oder 400 V?
Beides kommt vor: kleinere/standardisierte Tische gibt es oft mit 230 V or 380/400 V, viele Industrieausführungen laufen 3-phasig 400 V. Ein Blick ins Datenblatt Ihres Modells klärt’s.
Wie schnell hebt so ein Flachhubtisch?
Das variiert je nach Last und Modell: realistisch sind grob 17–40 Sekunden pro Hubzyklus. Hersteller geben die Hubzeit im Datenblatt an.
Welche Sicherheitsmerkmale sind Pflicht?
In Europa gilt die EN 1570-1; gefordert sind u. a. Sicherheitsleisten/Fußschutz, Not-Aus und Totmann-Bedienung. Viele Flachhubtische haben eine umlaufende Sicherheitsleiste unter der Plattform.
Muss der Tisch am Boden verankert werden?
Stationäre Modelle sollten (je nach Hersteller: müssen) fest am Boden verschraubt werden, damit alles stabil und normgerecht bleibt. Details stehen in den Montagehinweisen.
Gibt es Flachhubtische aus Edelstahl für Lebensmittel/Pharma?
Ja, Edelstahl-Ausführungen sind für Nass- und Hygienebereiche konzipiert. Sie sind korrosionsbeständig und leicht zu reinigen.
Eignen sich Flachhubtische auch für Rollcontainer und Wagen?
Mit der passenden Auffahrrampe können Sie Rollwagen, Hubwagen & Co. bequem auf die Plattform fahren – ideal, wenn kein Grubeneinbau möglich ist.
Wo steht das Aggregat – intern oder extern?
Bei superflachen Ausführungen ist das Antriebsaggregat oft freistehend neben dem Tisch platziert; das erleichtert Service und hält die Bauhöhe gering. Typisch sind Schutzarten wie IP54.
Gibt es auch mobile Lösungen?
Klassische Flachhubtische sind stationär, aber es existieren mobile Hubtischwagen (oft mit geringeren Traglasten) für flexible Einsätze. Prüfen Sie, ob Mobilität or maximale Stabilität wichtiger ist.
