Column lifter as a load lift
Most column lifter are used to transport goods from one floor to the next. The advantage over one lifting table is that you can reach very high heights despite the small platform size. Likewise, no or only a small pit is necessary.

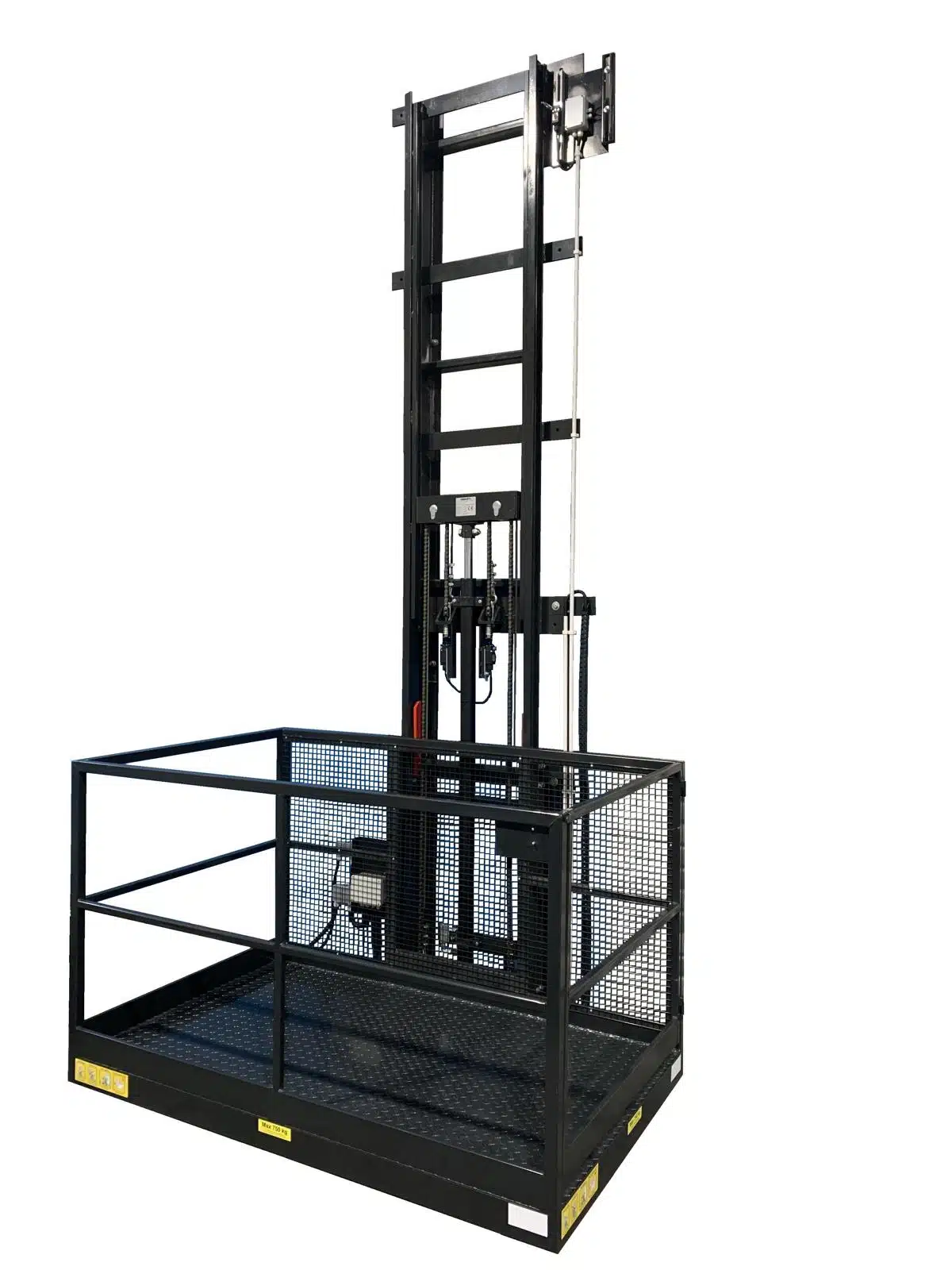

With a lifting table, the lifting mechanism – the scissor lift – is installed beneath the platform; therefore, a deep pit or a correspondingly high installation height is required. With a column lifter The lifting technology is located in the mast. The platform is transported up or down along the mast. In principle, this jack works like a stationary forklift mast.
The classic column jacks has a mast on one long side. Depending on the platform size or required load capacity, more columns are required. The drive takes place via a hydraulic motor, which is set up outside the driving area. The vertical hydraulic cylinder pushes or pulls the system up or down.
Multiple mast column jack

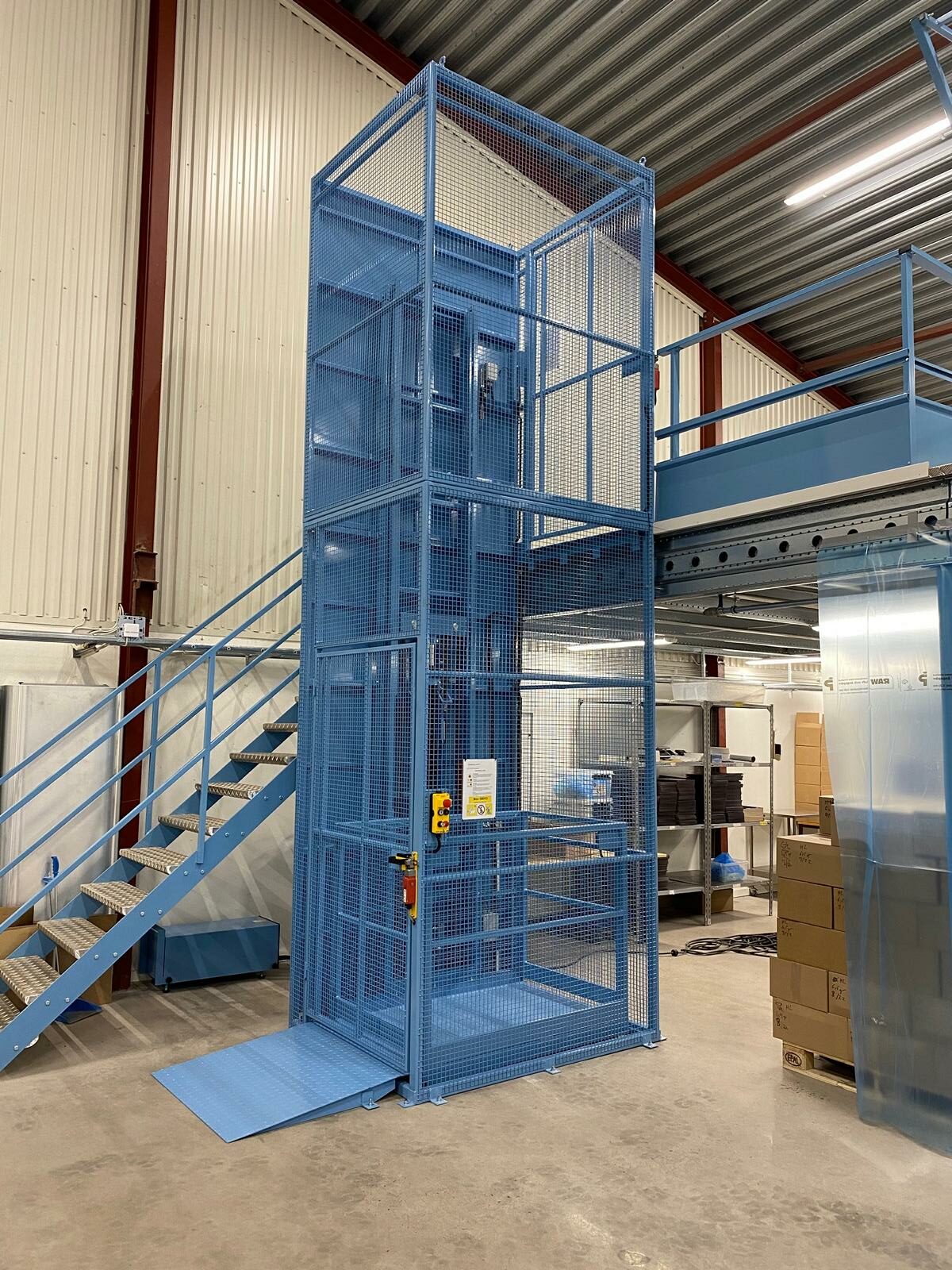

Column lifter with grid shaft
This column lifter is used in a warehouse to lift products and goods from the hall level to the platform. The load lifter was installed in a shaft so that it can be served from both stops.
We not only delivered the jack and the shaft, but also carried out the ready-to-use assembly.
As you can clearly see from this project, a column jack does not require a pit in the ground. Thanks to the vertical lifting technology built into the mast, the platform can start 100mm above ground level.
We solved this 100mm from the hall level to the platform for this customer with a ramp. Our technicians installed these during installation.

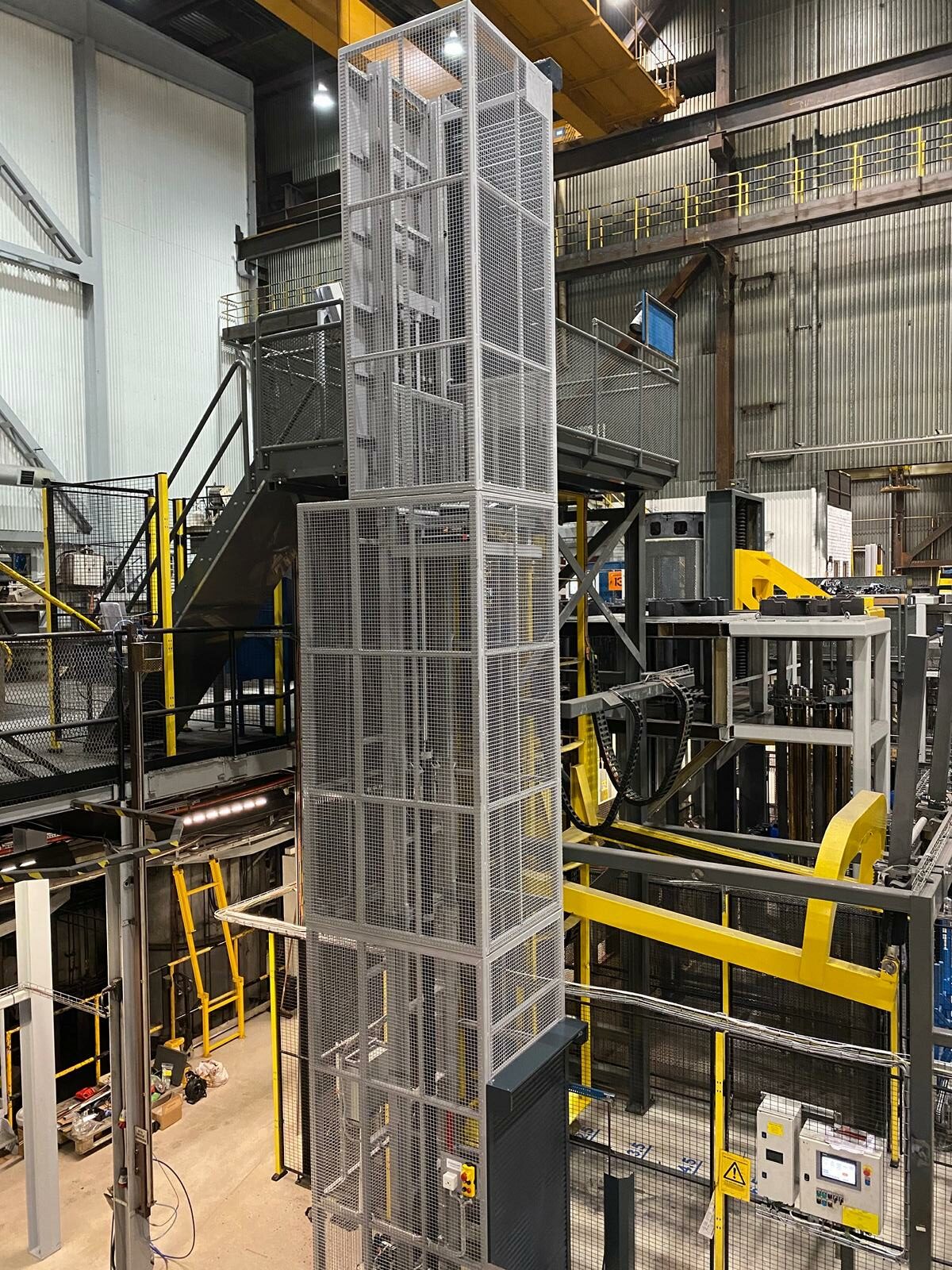

Column lifters in industry
column lifter are very often retrofitted in industrial companies because a pit cannot be created in the ground for other lifting solutions. Our jack can be placed on the hall floor or a very low pit can be created. Depending on the version, we can get by with a pit depth of 100mm.
In this project, the lifting process had to be carried out very quickly. For this reason, we have installed automatically opening roller doors at both stops, which can be opened at the push of a button. Of course, the gates only open when the platform is in the appropriate position.
In addition, the lifting speed has been significantly increased compared to the standard.
So that our hydraulic drive motor and our control system do not get in the customer's way, we have the shaft from Column lifter for loads slightly larger at the bottom. This meant we were able to place the control and motor behind the column in a protected area. An inspection opening was of course also taken into account.

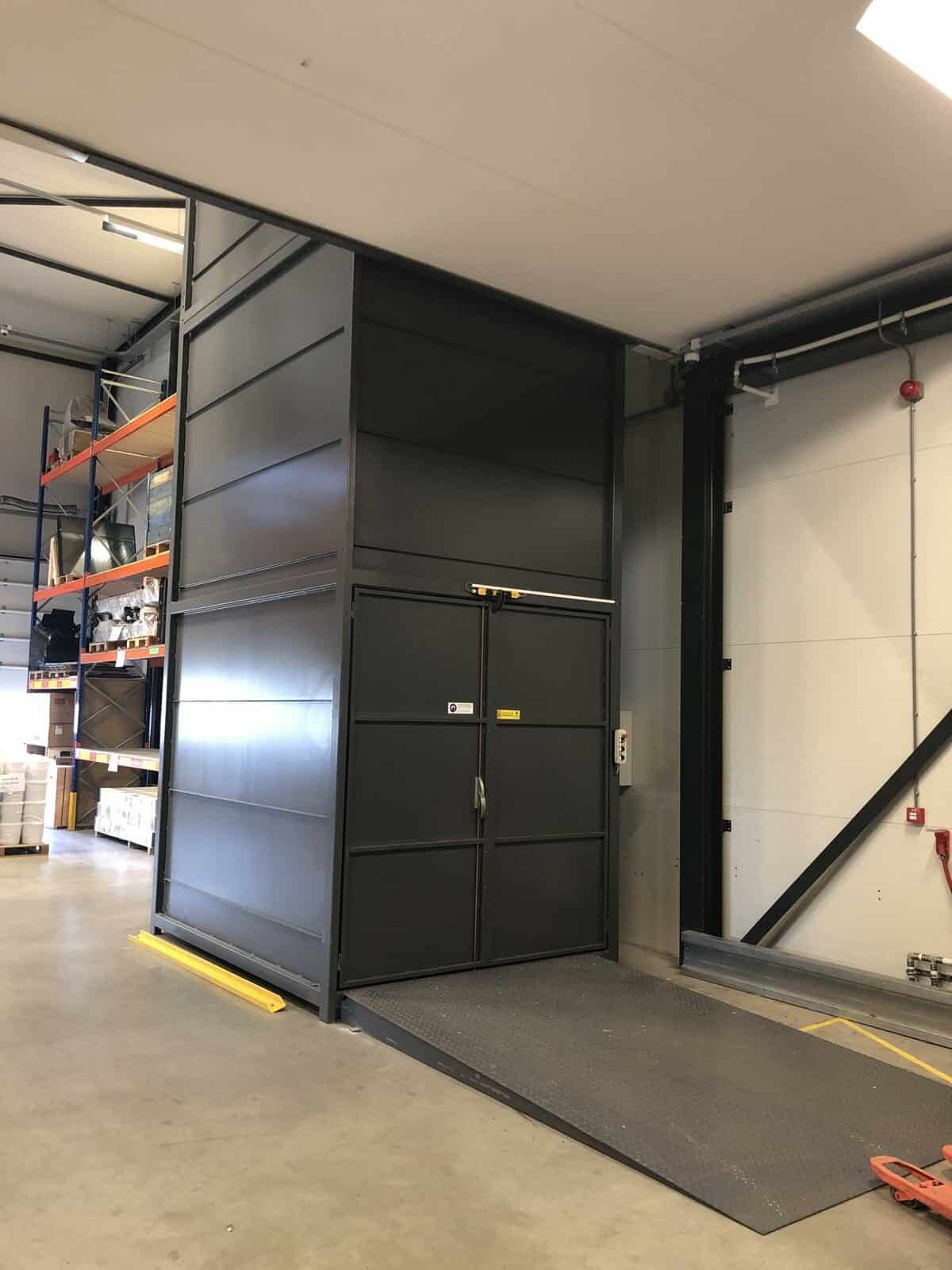

Column jack with sheet metal shaft
Every now and then it happens that the customer does not want an open column jack or a grid shaft. This can be decided for optical reasons or because of heavy contamination in production halls.
With this project you can also see at first glance that no pit has been created here. The column lifter became direct on the hall floor assembled. Loading takes place via a ramp supplied by us with a classic pallet truck.
Both stops were fitted with double-leaf steel doors with positive contacts. Our technicians installed these during the assembly process.
